TRX-4 Chevrolet K10 Black

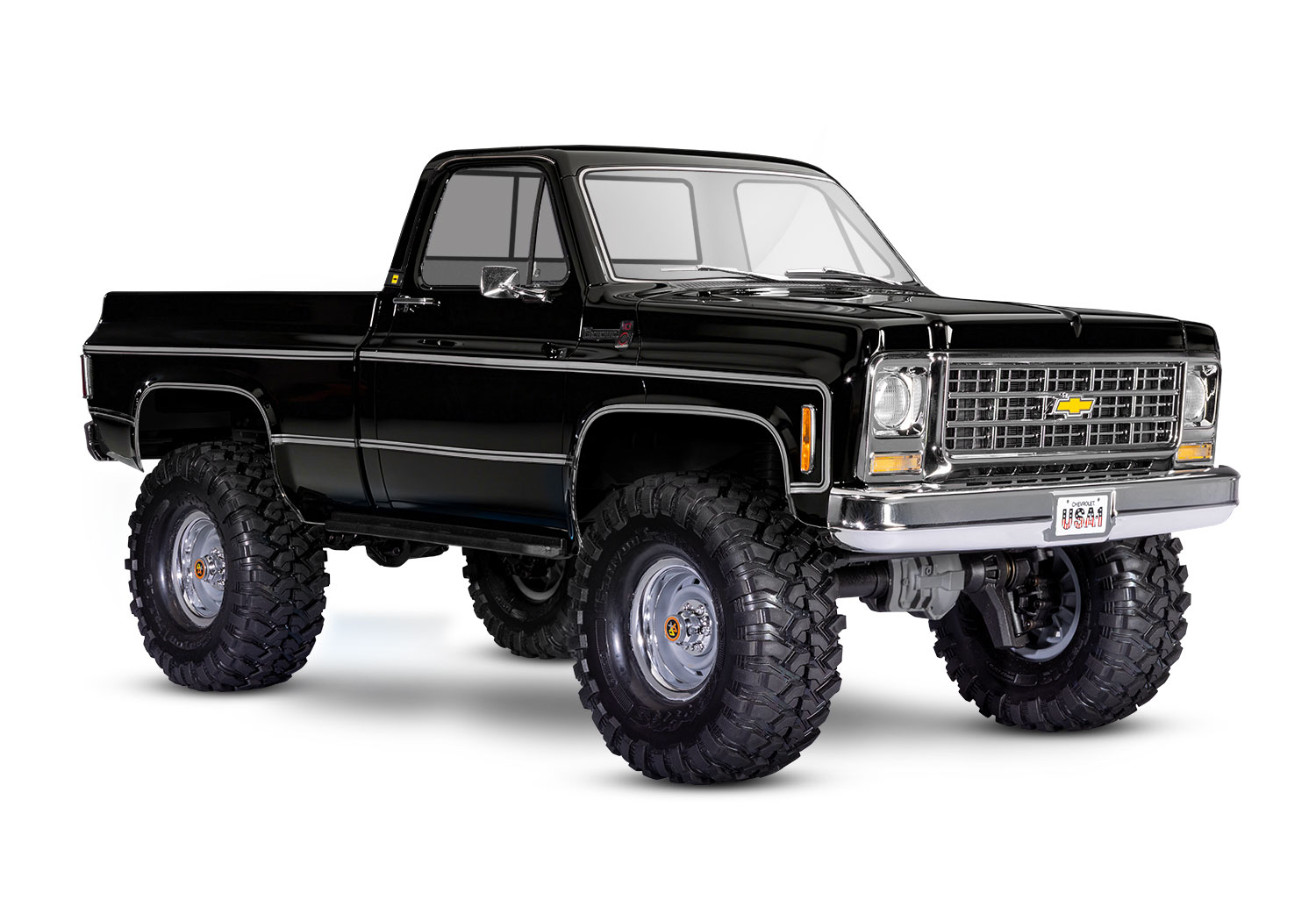

Traxxas TRX-4 Chevrolet K10 1/10 Scale 4WD RTR Trail Truck (Black)

The Traxxas TRX-4 Chevrolet K10 captures the classic styling of the iconic square-body pickup and pairs it with modern, high-performance trail engineering. Built on an extended high-clearance steel ladder frame, this 1/10 scale rock crawler features an officially licensed Chevrolet K10 body utilizing an advanced, clipless mounting system for a clean, scale look free of traditional body posts. Underneath, it features high-clearance portal axles that eliminate torque twist and spool-locked front and rear axles for continuous, full-time 4WD traction. Powered by a Titan 550 21T motor and a waterproof XL-5 HV electronic speed control, this Ready-To-Explore trail truck arrives fully assembled with factory-installed electronics and heavy-duty aluminum GTS shocks to deliver extreme capability right out of the box.

Product Features

• Clipless Chevrolet K10 Body: Officially licensed body features scale details like chrome bumpers, side mirrors, door handles, and wipers, mounted via an internal structural cage with a hidden quick-release latching system.

• High-Clearance Portal Axles: Lifts the center pumpkin to provide massive ground clearance while improving suspension geometry and reducing driveshaft strain.

• Full-Time Spool-Locked Axles: Front and rear axles feature solid spools instead of open differentials, ensuring continuous climbing power across all four wheels simultaneously.

• Extended Wheelbase Chassis: Utilizes an extended 336mm wheelbase built with 1.5mm thick steel ladder frame rails for superior stability and torsional rigidity.

• XL-5™ HV Waterproof ESC: Handles both 2S–3S LiPo and 6–7 cell NiMH power inputs, offering five specialized drive profiles including Trail and Hill-Holding Crawl modes.

• Single-Speed Heavy Duty Transmission: Simplified, robust drivetrain configured with all-steel gears and a dual horizontal shaft design with a twin friction plate slipper clutch.

• Chassis-Mounted 2075X Servo: Digital, high-torque, metal-gear steering servo is mounted directly to the chassis to eliminate bump steer and achieve a tight 45-degree steering angle.

• Canyon Trail 1.9" Tires: Pre-mounted trail-tuned S1 compound tires with foam inserts wrapped around brilliant 1.9-inch chrome mag wheels for maximum traction.

Specifications

• SKU / Part Number: 92154-4-BLK

• UPC / Barcode: 020334060747

• Scale: 1/10

• Length: 22.30 inches (566 mm)

• Width: 9.78 inches (249 mm)

• Height: 9.47 inches (241 mm)

• Wheelbase: 13.23 inches (336 mm)

• Center Ground Clearance: 3.14 inches (80 mm)

• Weight: 5.79 lbs (2.63 kg)

• Drivetrain: Shaft-Driven 4WD (Spool-Locked)

• Motor: Titan 21T 550 Reverse Rotation Brushed

• ESC: XL-5 HV Waterproof (Traxxas High-Current Connector)

• Radio System: TQ 2.4GHz 2-Channel Transmitter with 6519 Receiver

Needed to Complete:

• Battery: 2S or 3S LiPo Battery, or 6–7 cell NiMH Battery with Traxxas Connector

• Charger: Compatible Multi-Chemistry Balancing Charger

• Transmitter Batteries: (4) AA Alkaline batteries for the radio controller

Includes:

• Traxxas TRX-4 Chevrolet K10 RTR Trail Truck (1)

• Factory-Installed XL-5 HV Waterproof ESC & Titan 550 Motor (1)

• TQ 2.4GHz 2-Channel Radio System (1)

• High-Quality Maintenance Tools Set (1)

• Instruction Manual (1)
