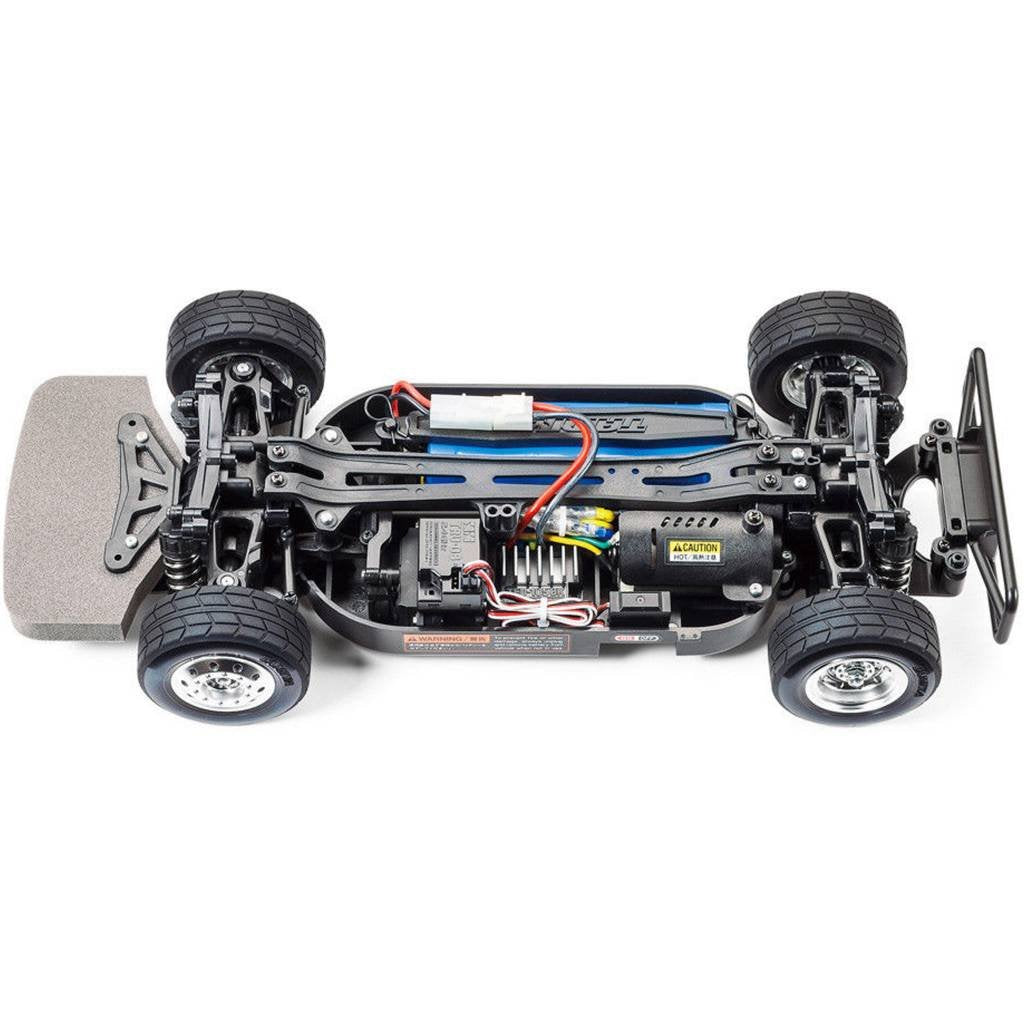

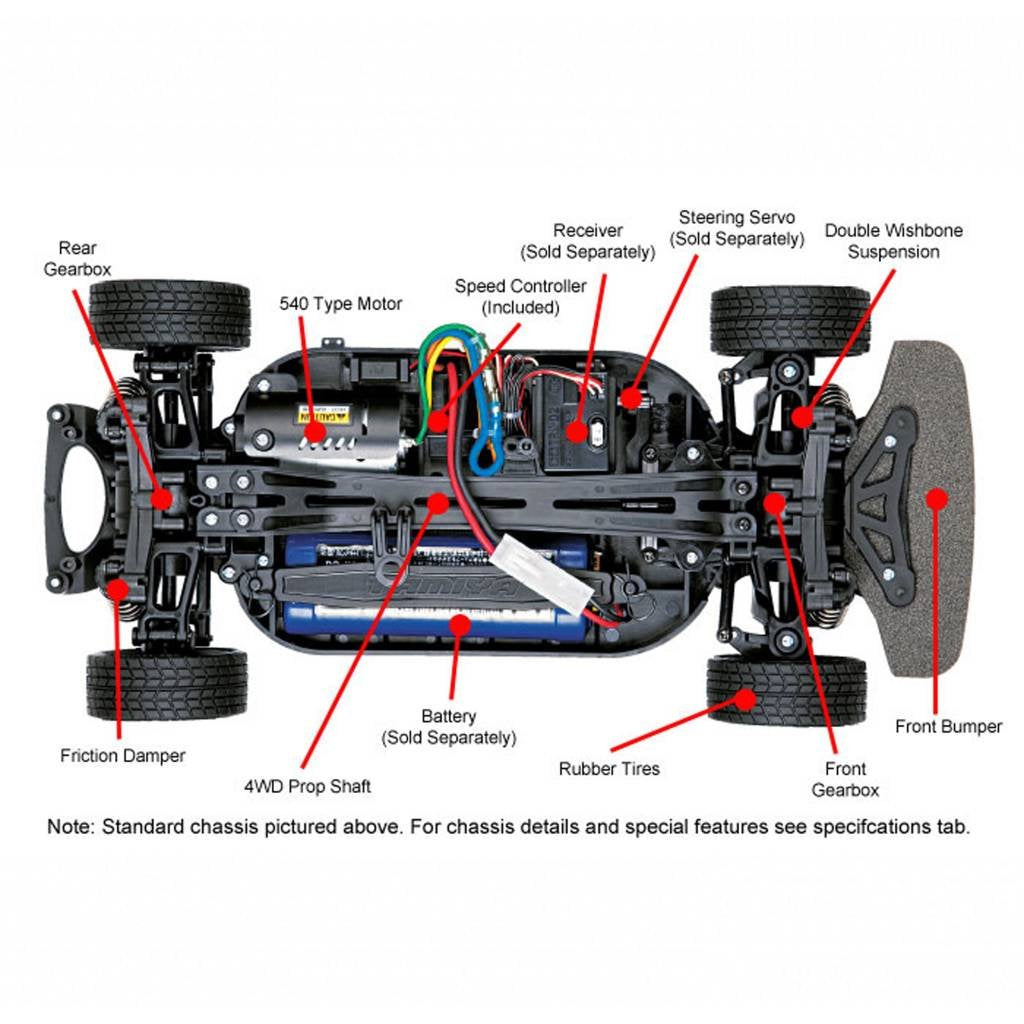

Chassis: TT-01 Type E, plastic construction with fiberglass
reinforced nylon resin upper deck
Drive: Four wheel with dogbones
Motor: Mabuchi torque tuned 540 brushed, longitudinally mounted
Electronic Speed Control: TBLE-02S
Differentials: Gear type
Shocks: Plastic body friction (not oil filled)
Body: Four piece clear polycarbonate
Wheels: Plastic construction, matte finish chrome
Tires: Radial, diameter 2.7" (70mm), 1.02" (26mm) wide
Steering Mechanism: Bell crank. three piece linkage for sharp
steering response
Suspension: Fully independent double wishbone
Caster: Adjustable front only , caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
in relation to the chassis
Camber: Non-adjustable
Front Bumper: Foam
Team Hahn Racing MAN TGS Semi Truck Kit with, Brushed Motor, ESC,
Shocks, Decals, Tires, Wheels, 19T Pinion Gear, 61T Spur Gear,
Instruction Manual
Radio: 2-channel with standard size & torque steering servo
Battery: 7.2V NiMH or NiCd with Standard connector
Battery Charger to match selected battery
Building and track equipment
Length: 17.2" (438mm)
Width: 7.5" (190mm)
Height: 8.1" (207mm)
Wheelbase: 10.1" (257mm)
|
